KL27229 TC Breakdown tri-clover magnetic pump 25w

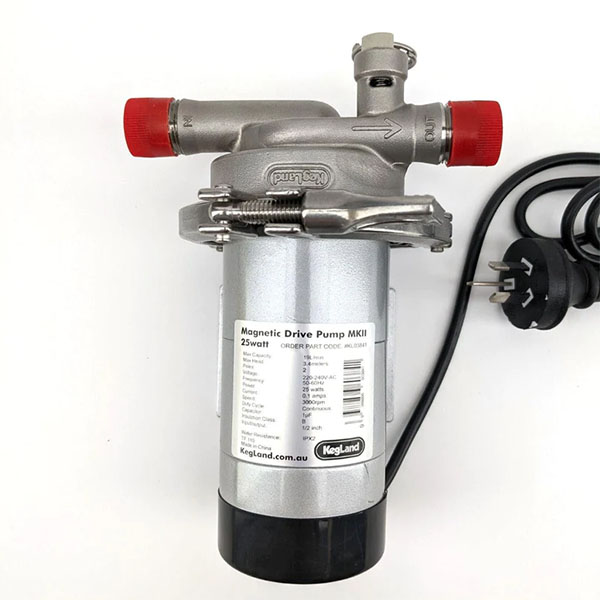

TC Breakdown – 3 Inch Tri-Clover Magnetic Pump 25w

Name: TC Breakdown - 3 Inch Tri-Clover Magnetic Pump 25w
SKU: KL27229
Price: 3290.00 THB
Availability: OutOfStock

฿3,290.00

Out of stock

SKU: KL27229 Categories: 3 Inch Tri-Clamp fitting, All Products, All-Grain Brewing, BREWING EQUIPMENT, Brewing Hardware, KegLand, New Arrival, Pumps and Parts, Replacement Parts, Tri-Clamp (Tri-Clover) Tags: 25w, magnetic, pump, tri clover

TC Breakdown – 3 Inch Tri-Clover Stainless Steel Pump

25w Magnetic Pump – Inline (220-240v)

The TC Breakdown brewing magnetic pump is a tri-clover stainless steel pump type that eliminates cavitation, is easy to clean and designed specifically for the brewing industry.

Breakdown Magnetic Pump Specifications

Voltage: 220-240 at 50-60hz

Max Head: 3.4m

Max Flow: 19L/min

Wiring: Pre wired with Australian standard 10amp power cord

Fittings: 1/2 BSPSpecifications:

NOTE: Like almost all centrifugal pumps, do not run this pump dry.

This TC Breakdown magnetic pump has been designed specifically for the brewing and food industry when keeping your products sanitary is a must.

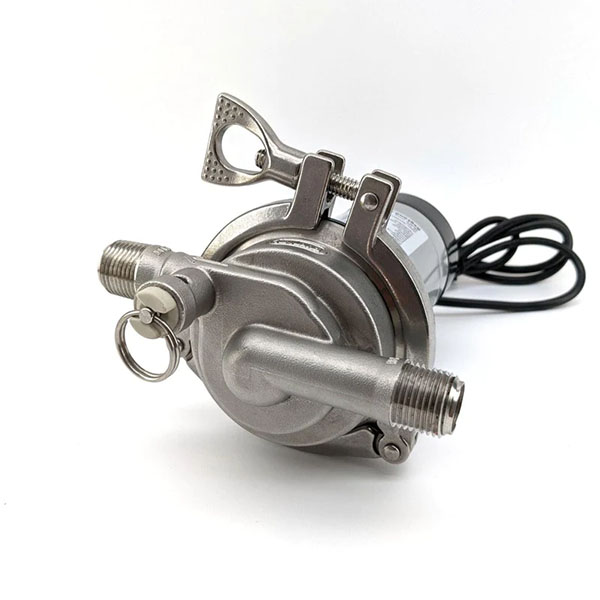

Tri-Clover Head

The Tri-Clover(TC) head can be removed easily and quickly using a 3inch tri-clover clamp meaning no tools are necessary and you can whip the head of in a flash to clear out spent grain, hop material or even a blockage.

Inline Design

The inline design means the input and output are inline making it easier to integrate into your brewery setup and this it’s easy to keep your hoses neat and tidy.

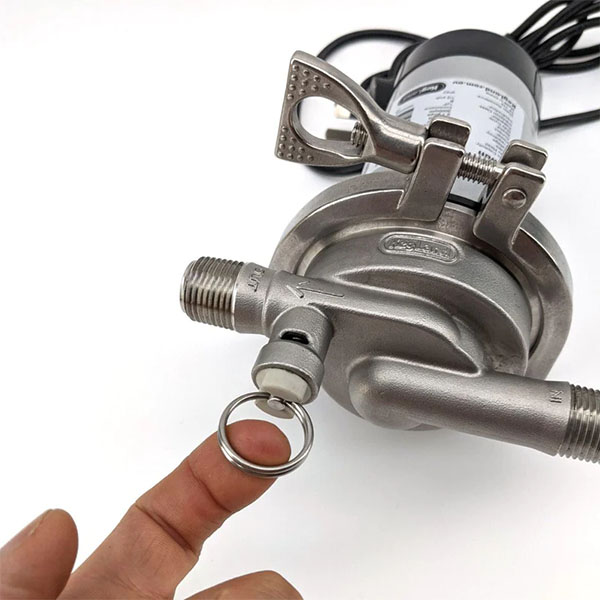

Purge/PRV – Eliminate Cavitation

Unlike some other pumps such as the Blichmann Engineering RipTide pump our pump head uses Cornelius compatible PRV so if you are already in the brewing industry you will have compatible spare parts in your tool kit.

The PRV acts as a safety so you do not over pressurize your pump head or brewery system. It can also be used to purge out air practically eliminating cavitation issues.

304 Stainless

The entire pump head is made from 304 Grade Stainless steel so it’s highly resistant to chemicals, heat and physical abuse.

Any Angle

As the pump head attaches to the body using tri-clover clamp the pump head can be rotated at any angle giving you infinite adjustment on the angle at which the hoses connect to the pump.

This also makes it easy to configure the plumbing to your unique brewery design.
