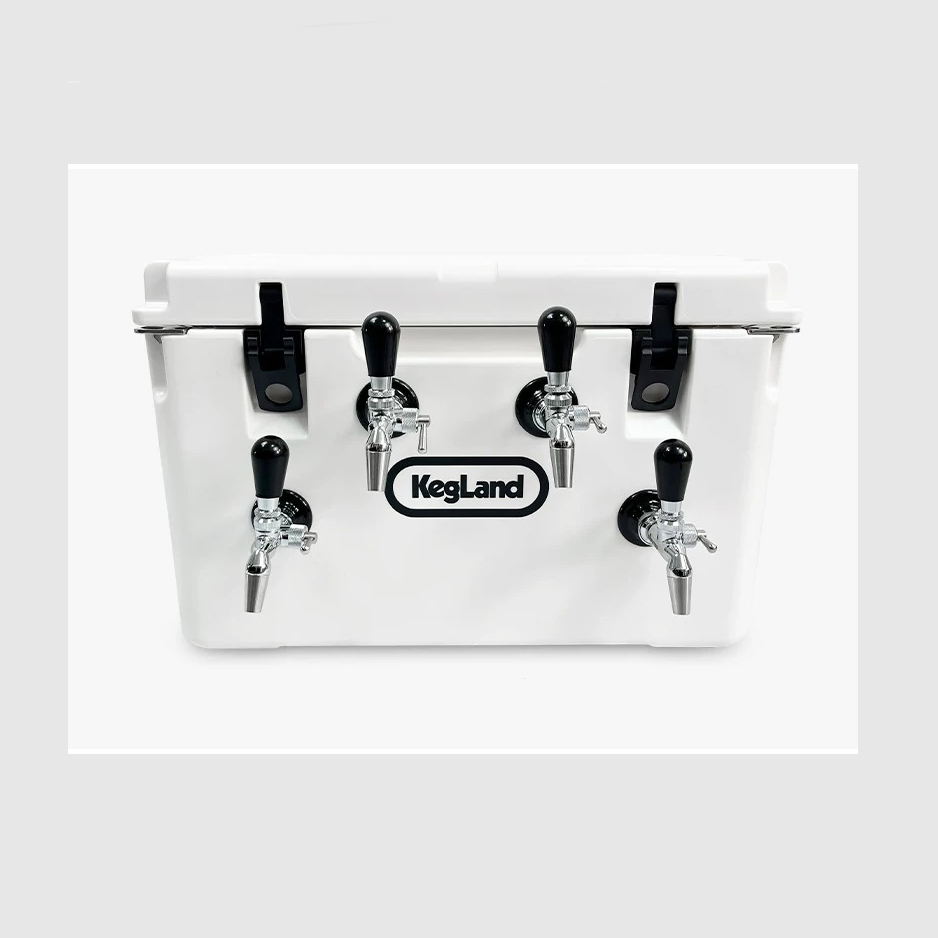

4 Taps Jockey Box (Quadruple Tap Cooler) with Aluminum Cold Plate

ผลิตจาก Cooler เกรดพรีเมี่ยมนำมาทำเป็น Jockey Box พร้อมหัวกดอย่างดี 4 หัว

มาพร้อมทั้งแผ่นแลกเปลี่ยนความเย็นทำจากอลูมิเนี่ยมอย่างดี Jockey box มาพร้อมกับ Stainless Steel Tap อย่างดีจาก NUKATAP

ช่วยให้การเสิร์ฟเครื่องดื่มนอกสถานที่เป็นเรื่องง่ายดาย เพียงใส่น้ำแข็งเข้าไป และต่อเครื่องดื่มเข้า ดันด้วย CO2 ก็พร้อมเสิร์ฟได้ทันที

เหมาะสำหรับไปปิคนิคนอกสถานที่ Cooler เก็บความเย็นได้ยาวนานเพราะมีฉนวน PU Foam ช่วยให้เก็บความเย็นได้อย่างมีประสิทธิภาพ

Unlike many other jockey box kit this particular jockey box comes with a premium grade cooler. This is a rotomolded cooler that has PU high density insulation. It is capable of holding ice in the cooler for many days.

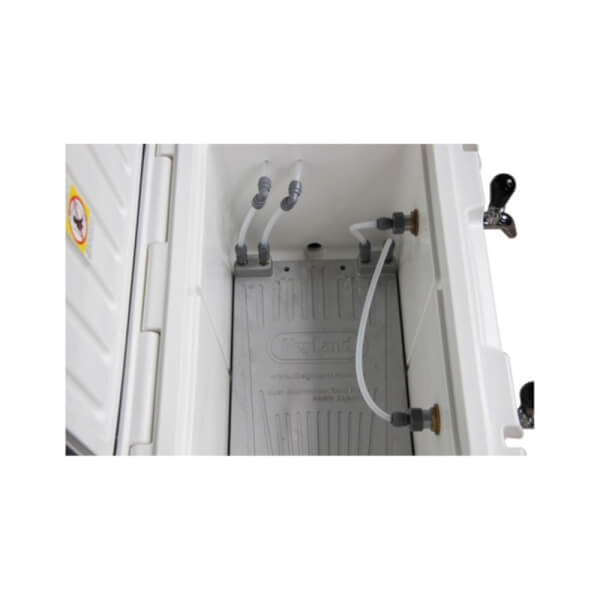

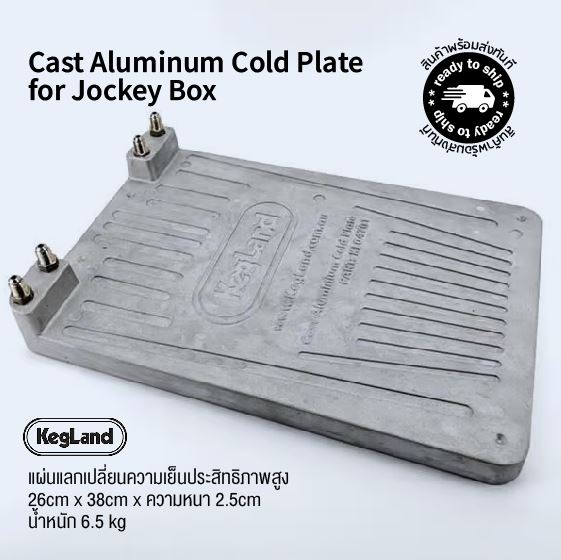

The cold plate is the high thermal conductivity aluminum casting. The taps, shanks and other parts are made from stainless steel 304.

Often other jockey box/cold plate systems are made with stainless coils. The cast aluminum cold plate has a larger thermal mass that acts like a big heat sink and aids the transfer of heat more effectively.  The other benefit of the cast aluminum cold plates is that they are compact and give you more free space in the ice so you can stack other drinks into the cooler as well above the cold plate.

So if you are looking for a commercial grade jockey box kit that will last a lifetime this is what you need.

These kits include:

• 1 x Rotomolded and High-Density PU Foam Insulated Cooler/Esky
• 2 x Cast Aluminum Cold Plate (2 x Product)
• 4 x NUKATAP SS Taps
• 4 x Black Plastic Tap Handle (Long Slender Type)

The cooler already has all the holes pre-drilled for your convenience. Pushing the hoses together and tight up a couple nuts and you will be pouring in no time.

NOTE: You need to purchase kegs and couplings separately.

INSTRUCTIONS

1. Attach your kegs to the beer inlet hoses on the jockey box.  Purge the cold plate with beer.  It’s important to fill the cold plate lines with beer FIRST.  If you have water in lines and put very cold ice on the cold plate the water will freeze in the lines preventing liquid from flowing through.  So make sure you have beer in the lines first as full-strength beer freezes at 4C lower than water.
2. Fill the cooler with ice.  ICE MUST BE IN CONTACT with the aluminum cold plate for best performance.  In order to ensure you have ice in contact with the cast aluminum make sure to leave the drain hole open so the water can drain out.  If you leave water in the cooler, the ice will float on the water and not be in contact with the cold plate.
3. Set the regulator at approximately 30psi.  This high pressure is needed to push the beer through the cold plate that has considerable line resistance.

NOTE:

If your kegs are cold and you are using CO2 to dispense, please be aware that extended time at this elevated pressure might cause the beer to over carbonate. In case that your kegs are ambient temp then this should not be an issue as the CO2 will not easily dissolve into warm beer.  If you have cold kegs and dispensing at elevated pressures then you might want to consider dispensing with either straight nitrogen or CO2 and Nitrogen mixed gas.

Alternatively, if you are only dispensing at elevated pressures for a few hours this is not normally long enough to over carbonate the beer either.

You may need a CO2 tank to dispense the beer?
