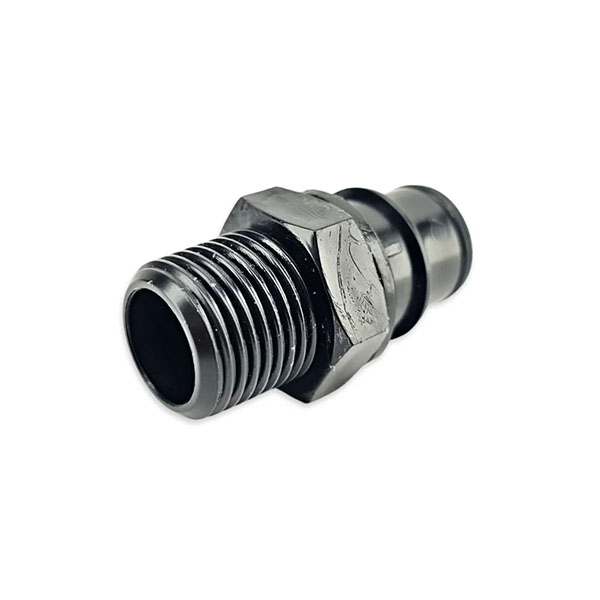

JoinTech Male Connector with Auto Shut Off x 1/2 Inch BSPT Male

The JoinTech Connectors are a premium quick disconnect alternative for high and low temperature beverage handling applications.

From hot side transfers to subzero glycol mixtures these fittings will handle the challenge.

When not connected to another JoinTech Connector this will not allow any flow. Incredibly useful on Pump or Glycol systems.

Compatible with: KL41102 JoinTech 13mm Barb x Female Connector with Auto Shut Off

Features:

• JoinTech Black UV Stable Design
• Equipped with Auto Shut Off Valve
• Vacuum Rating of 60psi

Connections:

• Male Plug Quick Disconnect
• 1/2″ BSP

Medical Grade Materials:

• Body: High-Strength, Chemically Resistant Polyketone Plastic
• Spring: 316 Stainless Steel
• O-Ring: EPDM

Operating Pressure: Vacuum to 60 PSI

Temperature Tolerance: -40°C to 138°C

3/8″ Flow Path
