Four Tap Jockey Box Builder – Stainless Steel Cooler – Taps not included

Jockey box ผิว stainless steel หรูหรา มาพร้อมกับ stainless coil และขั้วต่อสำหรับติดตั้งก๊อก 4 ขั้ว เลือกใช้ก๊อกได้ตามที่ต้องการ

This has the internals of the Jockey Box Kit to suit 4 beverages on tap. But it does not come with the Taps or 5/8″ adaptors for the back.
Remember this also does not include the gas side of the set up. It is only the base starter kit for a Jockey Box Kit if you wanted to set it up differently to the bundle maker.
E.g. if you wanted one tap to be Flow Control with a stout spout and the rest normal taps.

The main difference with this jockey box cooler set up compared to our Aluminium cold plate is that this particular set up requires a constant ice slurry. That means not just ice poured on, you need to make an ice water slurry. To help you get a fast slurry, we would suggest pouring in cold water on top of your 5kg ice bag. Adding a few handfuls of kosher salt will speed up that process (just remember to rinse after use).

Optional 5/8″ Inputs on back of cooler.
4 x KL06903 duotight – 8mm (5/16”) Female x 5/8” Female Thread – Currently in photo (not included)
4 x KL00840 Cornelius Type Ball Lock Post 5/8 Liquid – For use with homebrew ball lock disconnect jumper lines
4 x KL04916 K-Lok Female x 5/8 Female – For more commercial setups.

You might also want to consider:

1 x KL13178 Punched Counter Top Drip Tray – 50cm x 17xcm x 1.5cm
1 x KL06231 EVABarrier 5mm x 8mm Double Wall EVA (12meter Length in Bag)

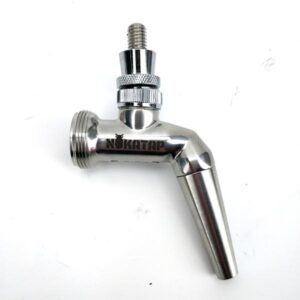

There are a few tap choices.
4 x KL15523 NukaTap FC – Flow Control Gen2
4 x KL15509 NukaTap SS
4 x KL17978 NukaTap SS – Stealth Bomber Black (Gen2)
4 x KL26482 NukaTap SS – Punisher Edition

Kegging Coupler Options:
4 x KL20749 duotight Liquid Disconnect 8mm (Black/Yellow)
4 x KL21418 Flow Control duotight Liquid Disconnect 8mm (Black/Yellow)
4 x KL08815 A-Type Couplers
4 x KL08822 D-Type Couplers

External Dimensions:
590mm wide (including handles)
405mm deep (including latch system)
410mm high

Internal Dimensions:
480mm wide
280mm deep
350mm high (there is a slight recess of 20mm at the top to fit larger kegs/bottles
