A-Type Coupler with PRV and duotight KL06903

Stainless Steel “A” Style Sanke Coupler is made from durable 304 stainless steel. It features a high-capacity pressure relief valve that is build directly into the coupler body. When functioning with other relief devices in the system, it will prevent a keg from reaching pressures in excess of recommended working pressure. Also, it allows the user to relieve pressure when needing to prevent or correct dispensing problems. The squeeze lever handle controls the flow of gas; up position is off, down position is on.

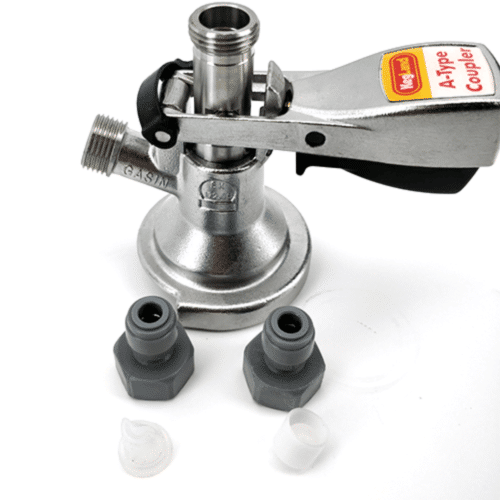

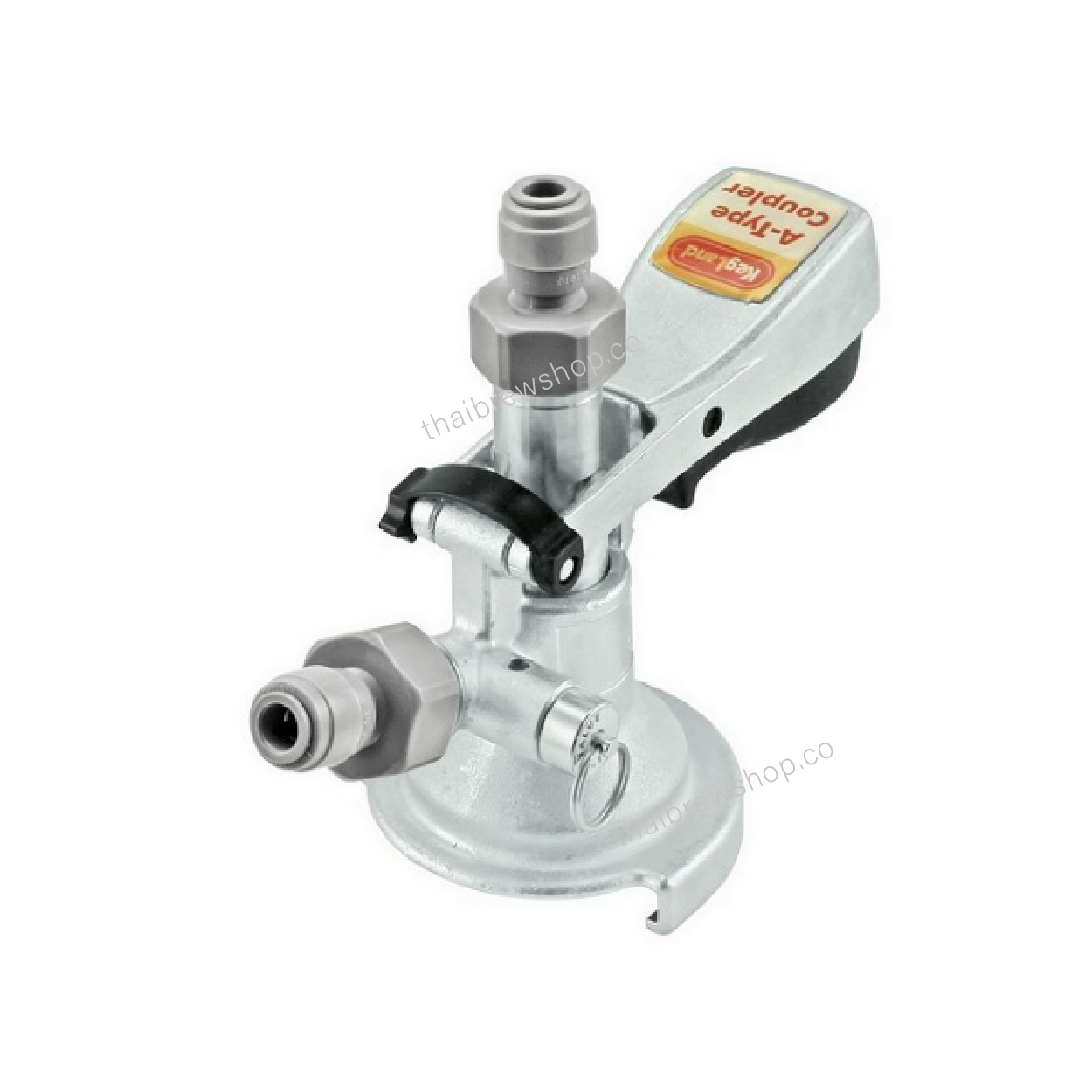

This keg coupler comes equipped with duotight fittings which are designed to work by simply pushing in the compatible tubing.

Inside each fitting are dual EPDM o-rings that provide superior sealing capacity due to having twice the sealing surface area when compared to other push in fittings. This makes Duotight fittings even more reliable and significantly reduces the chance of a leak.

For optimal performance it is recommended that when cutting your tubing it is cut straight, not on an angle, this helps to ensure a complete seal.

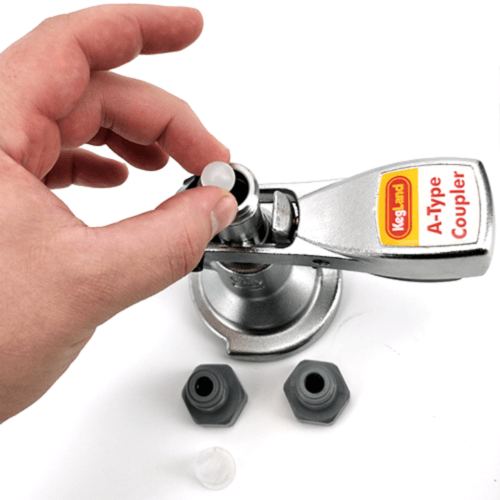

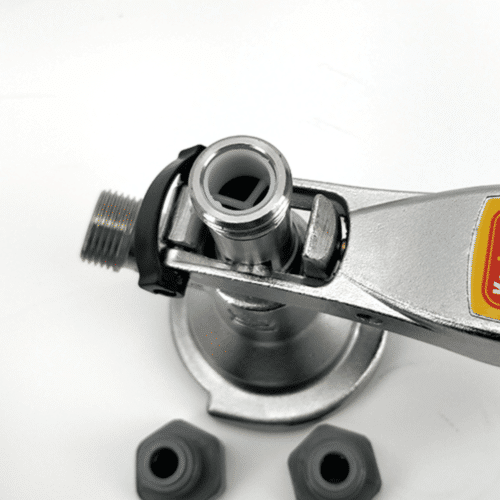

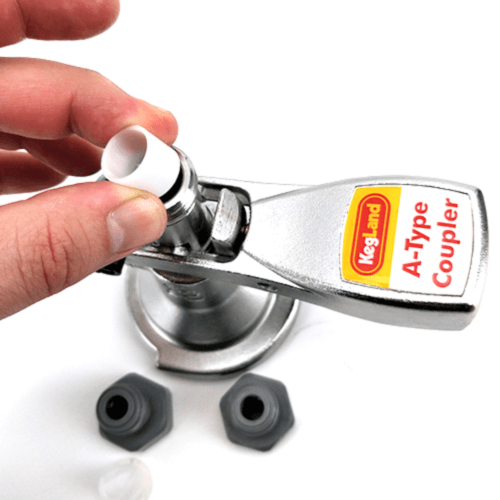

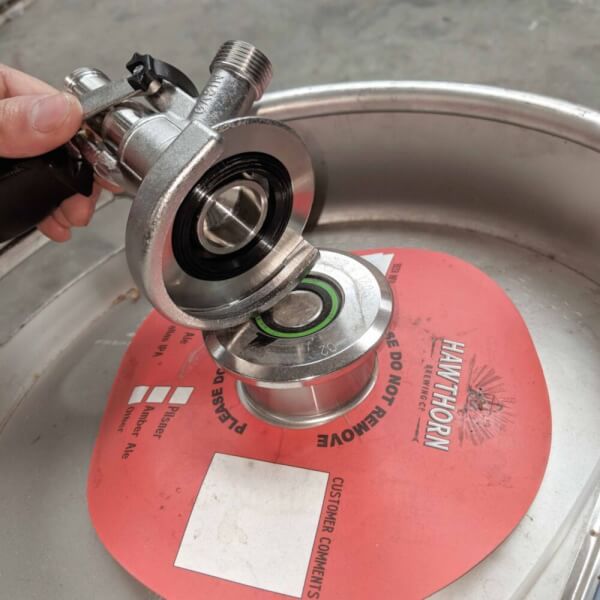

To install rotate clockwise on the keg valve until secure. Squeeze the lever handle and push down; this opens the keg valve and pressure inlet on the coupler. You are now ready to dispense. This coupler can be quickly dismantled for cleaning and periodic service. No special tools required.

Please Note: This product is NOT to be cleaned with chemicals

Specifications:

Material: 304 Stainless Steel

Finish: Polished Stainless Steel

Tailpiece Material: Plastic

Probe Material: 304 Stainless Steel

Type: “A” Style

Handle Type: Squeeze Handle

Tail Piece: 5/16″ (8mm) Push-In Fitting

Beer Port Size: 7/8″-14 (5/8″ BSP) (U.S. Beer Industry Standard)
